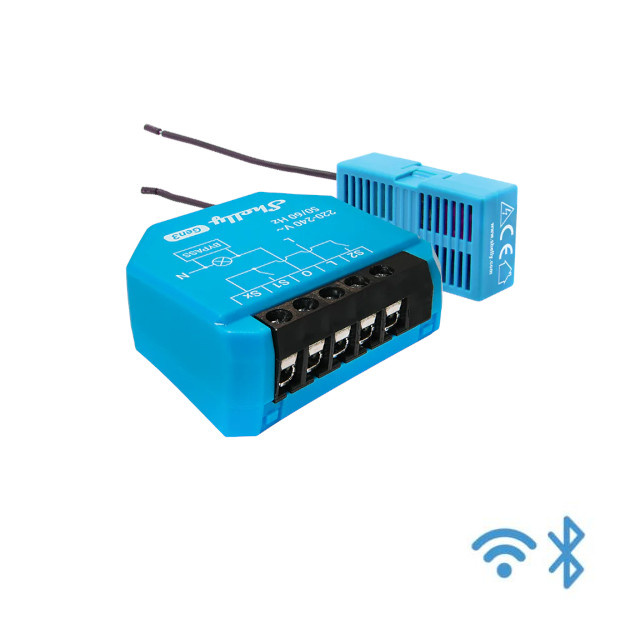

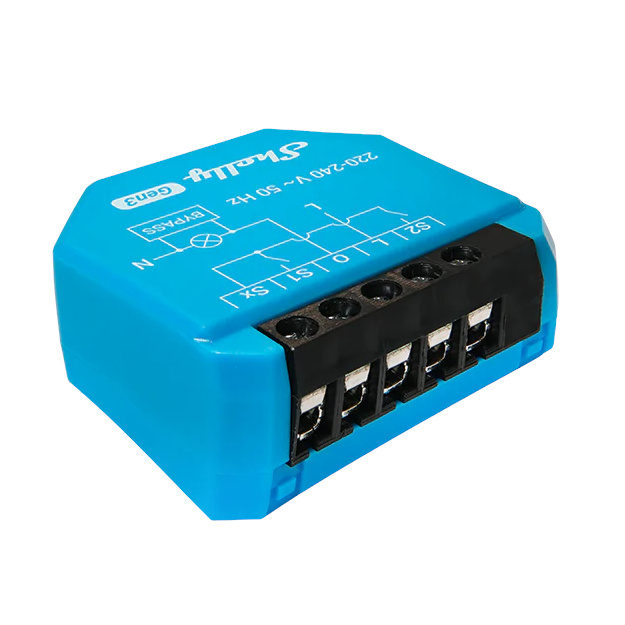

Shelly 1L Gen3

Finally, a smart WiFi in-wall switch that doesn't require a neutral wire. Often, the blue neutral wire is missing behind your wall switch, but that's no longer an issue with the Shelly 1L Gen3 WiFi in-wall switch. Delivered with Bypass, min. 5W and max. 200W bulbs.

Shelly 1L Gen3

Control your lights or appliances wirelessly with your smartphone from anywhere in the world. Easily create smart scenes and set timers in the free app for your home automation. For example, automatically turn on your lights at sunset or start your coffee machine at 7:30 AM from Monday to Friday. Voice control with Siri, Google Assistant, or Amazon Alexa is also possible; "Hey Google, turn on the table lamp."

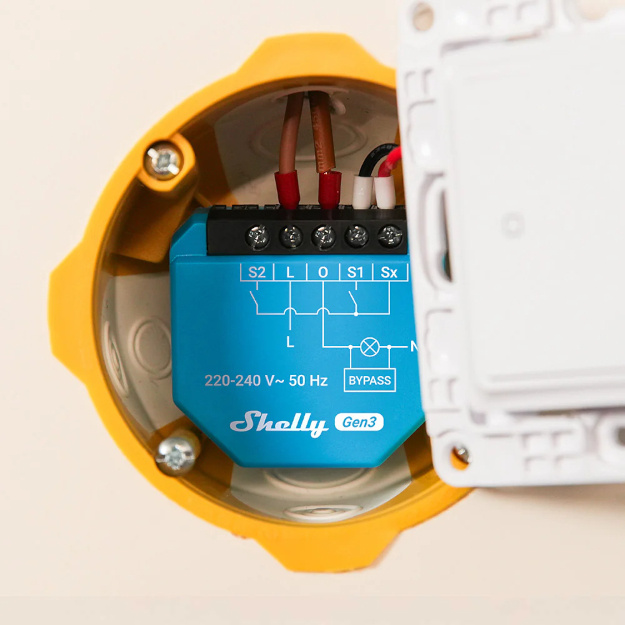

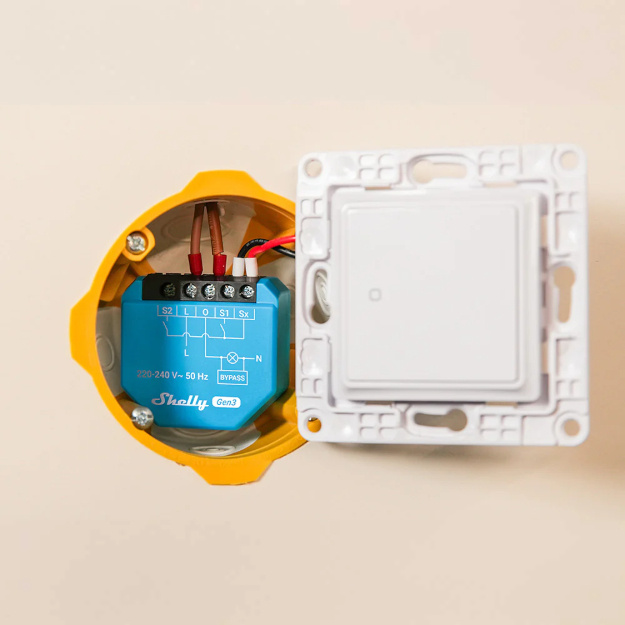

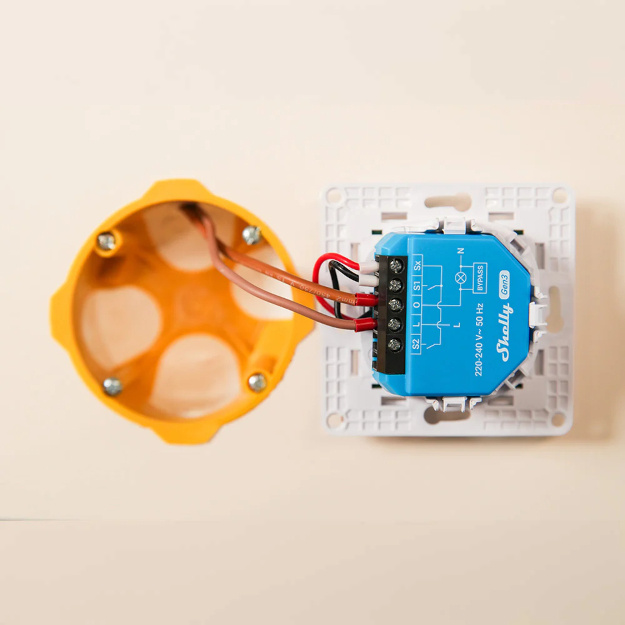

Install the Shelly 1L Gen3 easily behind your wall switch, outlet, or near your device, and connect via WiFi with the app. Shelly offers a free app that allows you to set up a smart home system easily and affordably without the cost of a gateway or hub. After setup, you can also control the switch wirelessly with the app from anywhere in the world, integrate it into smart scenes, and set timers, such as turning on your light at sunset. Voice control with Siri, Google Assistant, or Amazon Alexa is also available. The open source ensures that you can integrate the Shelly 1L Gen3 with almost any home automation system.

Also works with

_{* Apple HomeKit requires firmware update or a Homebridge}

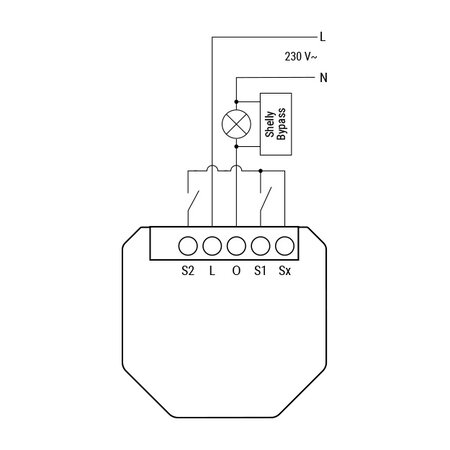

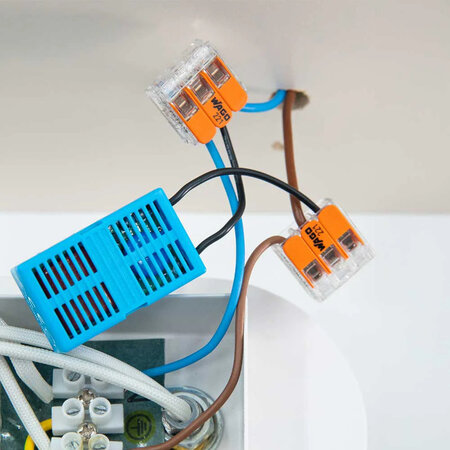

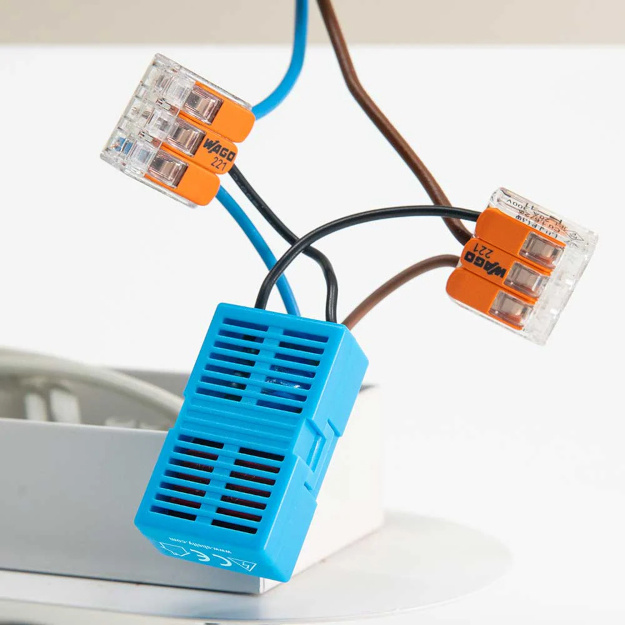

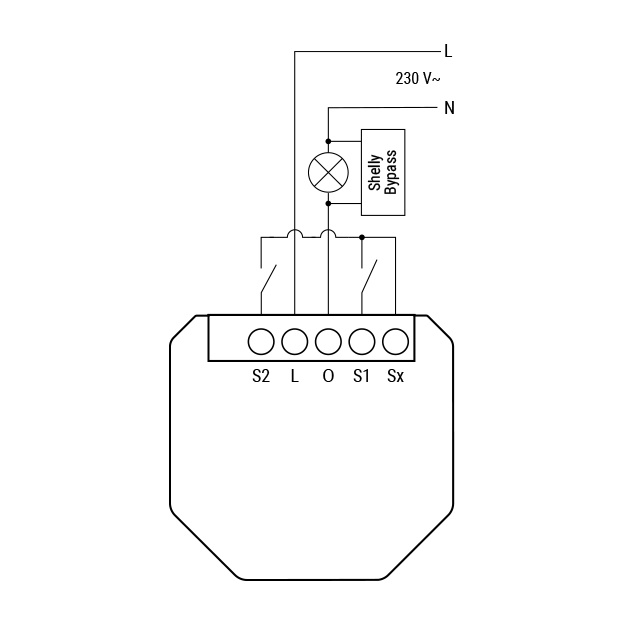

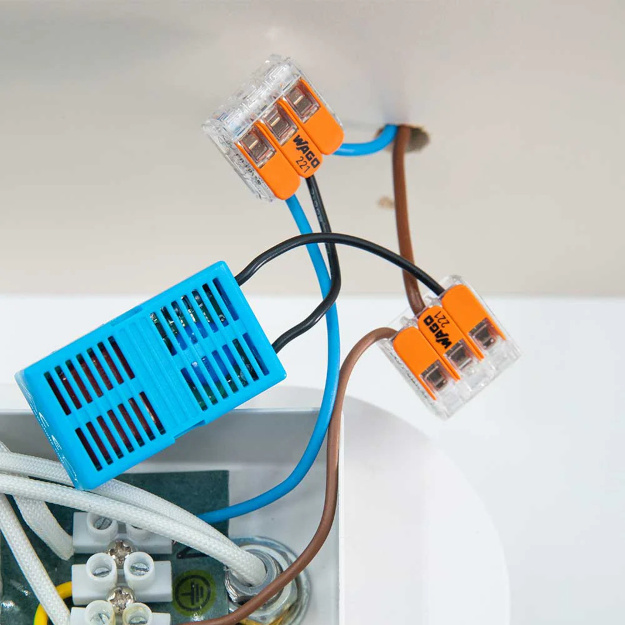

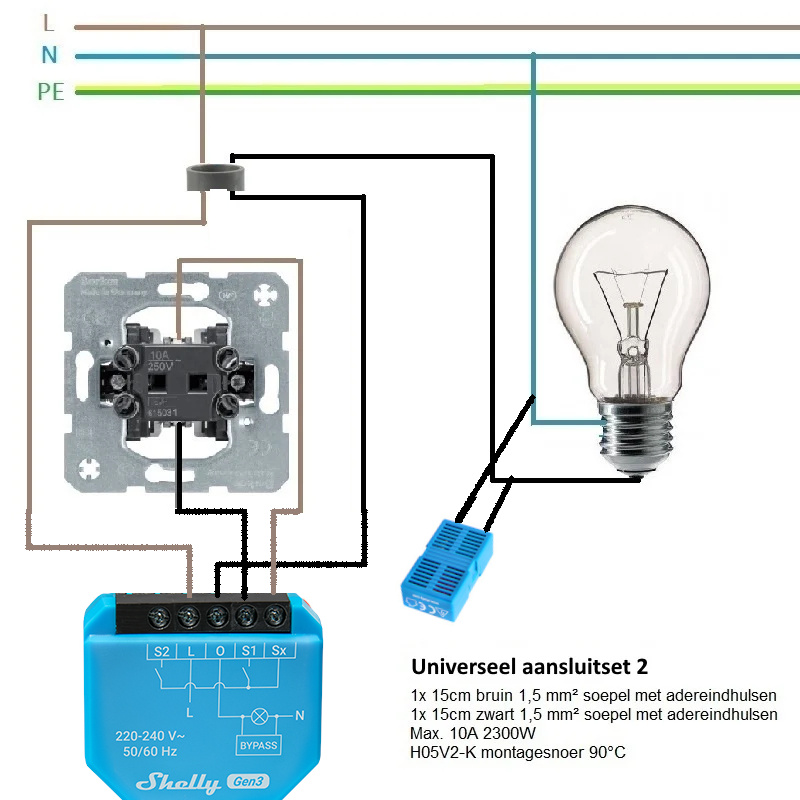

The Shelly 1L Gen3 relay switch supports 220-240VAC, requires Bypass to be installed at the light between switched load and neutral wire (except for incandescent bulbs), minimum 5W Bulbs and up to 200W, features the Shelly ESP-Shelly-C38F chip with 8MB of memory. The 8MB provides more storage for updates and a possible Matter Firmware update in the future. It also has Bluetooth for easy connection to your home WiFi, overheat protection, enhanced security with MQTT + SSL, MQTT combined with Cloud and scripting. Additionally, the terminals (screw connections) have been improved and are now suitable for up to 2.5mm², which was sometimes an issue with the old variant and the 2.5mm² wire behind the wall switch.

FEATURES

_{Pros and Cons}

	Open source
	Works stand-alone via 2.4 GHz WiFi
	2-wire connection, no neutral required
	Built-in web server
	Access Point and Client Mode
	Supports HTTP and/or UDP
	Single Relay in-wall switch
	220-240VAC
	Min. 5W, and Max. 200W
	Protected against overheating
	Free Android or iOS App
	Free Shelly cloud service
	Works with MQTT
	Works with Google Home or Alexa
	Easy to install
	In-wall, behind (wall) switch
	Works with switch, pulse switch, hotel switch
	Scene activation via App
	ESP-Shelly-C38F chip with 8MB of memory
	OTA firmware updates
	2 Years Carry-in Warranty
	Cannot dim, only on/off
	Installation of Bypass required
	No power measurement
	Not suitable for old fluorescent tubes with starters
	HomeKit requires firmware uodate or Homebridge

DOWNLOADS

Shelly 1L Gen3 Manual (Multi)
